OEM Molecular Sieve JZ-ZMS9 Manufacturers, Supplier

JZ-ZMS9 is Sodium aluminosilicate, It could absorb the molecular which diameter is not more than 9 angstroms.

Send Inquiry

Product Description

JZ-ZMS9 is Sodium aluminosilicate. It can absorb molecules with a diameter of not more than 9 angstroms.

Packaging Specifications

Sphere: 140kg / steel drum

Cylinder: 125kg / steel drum

Storage Instructions

The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.

Key Applications & Uses

Purification of gas in air separation plant, removal of H2O, CO2 and hydrocarbons.
Dehydration and desulfurization (removal of H2S and mercaptan, etc.) of natural gas, LNG, liquid alkanes (propane, butane, etc.).
Deep drying of general gases (e.g. compressed air, permanent gas).
Drying and purification of synthetic ammonia.
Desulfurization and deodorization of Aerosol.
CO2 removal from pyrolysis gas.
Compressed Air drying.
Removal of Hydrogen sulfide and mercaptan.
Air purification system.

Technical Properties & Specifications

Properties	Unit	sphere		cylinder
Diameter	mm	1.6-2.5	3-5	1/16”	1/8”
Static Water Adsorption	≥%	26.5	26.5	26	26
CO2 Adsorption	≥%	17.5	17.5	17.5	17.5
Bulk Density	≥g/ml	0.64	0.62	0.62	0.62
Crushing Strength	≥N/Pc	25	80	25	50
Attrition Rate	≤%	0.2	0.2	0.2	0.2
Package Moisture	≤%	1.5	1.5	1.5	1.5

Frequently Asked Questions (FAQ)

Q1: What is the molecular pore size / absorption limit of JZ-ZMS9?

A1: JZ-ZMS9 is a Sodium aluminosilicate structure that can absorb molecules with a diameter of up to 9 angstroms.

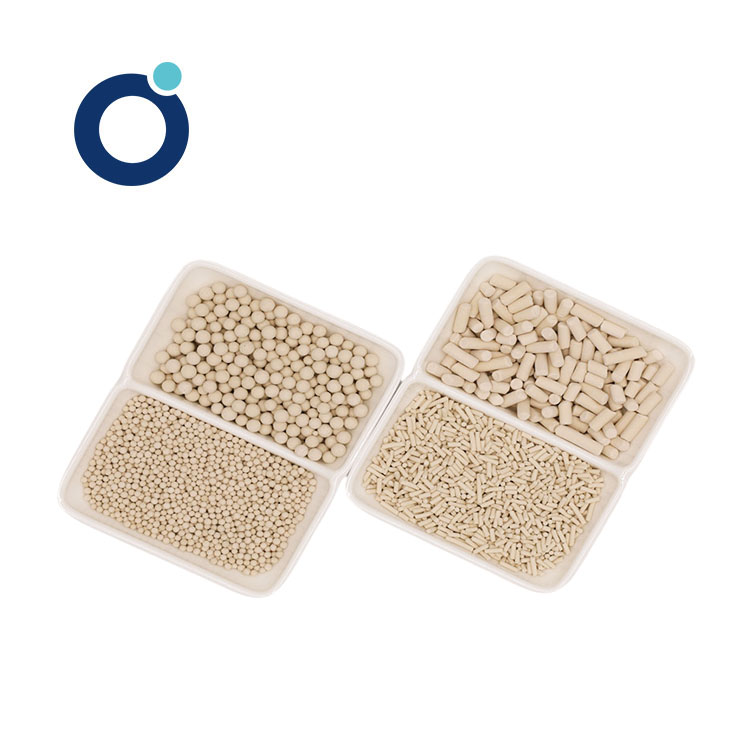

Q2: What sizes and shapes are available for JZ-ZMS9?

A2: It is available in Sphere shape with diameters of 1.6-2.5 mm and 3-5 mm, and in Cylinder shape with sizes of 1/16” and 1/8”.

Q3: How is this product packaged?

A3: The spheres are packaged in 140kg steel drums, and the cylinders are packaged in 125kg steel drums.

Q4: What are the storage requirements for JZ-ZMS9 desiccant?

A4: It must not be exposed to the open air and should be stored in dry conditions within air-proof packaging to maintain its quality.

Q5: What are the primary gases that JZ-ZMS9 can purify?

A5: It is widely used for purification and drying of air separation plant gases, compressed air, natural gas, LNG, synthetic ammonia, aerosol, and pyrolysis gas by removing H2O, CO2, H2S, mercaptan, and hydrocarbons.

Q6: What is the static water adsorption capacity of JZ-ZMS9?

A6: JZ-ZMS9 features a static water adsorption capacity of ≥26.5% for spheres and ≥26% for cylinders.
