DuraChem CAM-20S removes mercury in natural gas, LPG and naphtha streams, protecting downstream piping and equipment and providing a stream that complies with environmental regulations.
DuraChem CAM-20S is designed to meeting stringent cryogenic specifications and pipeline specifications and provides higher mercury capacity. It is a sulfided adsorbent, ready for immediate use.

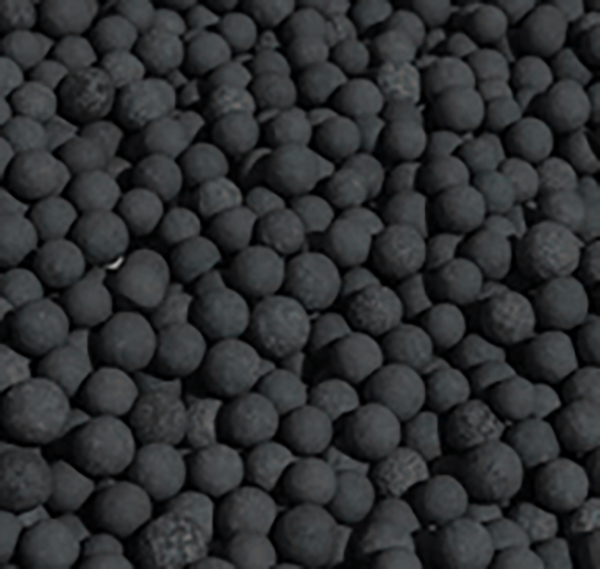

This high-performance adsorbent is an optimized smooth alumina-based adsorbent, impregnated with copper oxide as the active component to provide optimum adsorption for mercury removal from various streams in oil refining and petrochemical industrials, such as propylene and propane.
| Properties | UOM | Specifications | |
| Nominal Size | mm | 1.4-2.8 | 2.0-5.0 |
| inch | 1/16” | 1/8” | |
| Shape | - | Sphere | Sphere |
| Bulk Density | g/cm³ | 0.75-0.85 | 0.75-0.85 |
| Surface Area | ㎡/g | >150 | >150 |
| Crush Strength | N | >30 | >60 |
| L.O.I. (250-1000 °C) | %wt | <7 | <7 |
| Attrition Rate | %wt | <1.0 | <1.0 |
| Shelf lifetime | Year | >5 | >5 |
| Operating Temperature | °C | Ambient to 250 | |
