Best JooSorb AC-16 Pricelist, Products

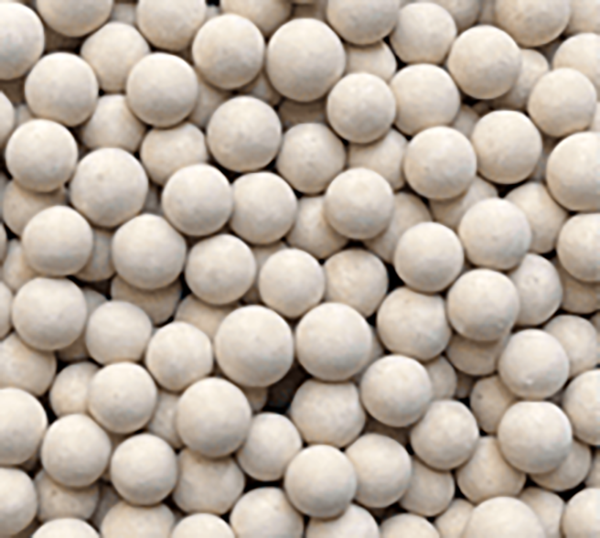

JooSorb AC-16 is a highly promoted spherical alumina adsorbent, optimized for the effective removal of HCl and organic chlorides. JooSorb AC-16 is a non-regenerative adsorbent.

Send Inquiry

Product Description

JooSorb AC-16 is a highly promoted spherical alumina adsorbent, optimized for the effective removal of HCl and organic chlorides.

This high-performance adsorbent is particularly designed for HCl and organic chlorides removal from various streams in oil refining and petrochemical industrials, including reforming net gas, fuel gas, reformate, LPG, and pyrolysis oil. Additionally, JooSorb AC-16 is also used in propane dehydrogenation unit for remove HCL from propane cracking gas. JooSorb AC-16 is a non-regenerative adsorbent.

Key Applications

Reforming Net Gas & Fuel Gas
Reformate & LPG
Pyrolysis Oil Purification
Propane Cracking Gas (PDH Unit)

Technical Specifications

Properties	UOM	Specifications
Nominal Size	mm	1.4-2.8	2.0-5.0
	inch	1/16”	1/8”
Shape	-	Sphere	Sphere
Bulk Density	g/cm³	0.7-0.8	0.7-0.8
Surface Area	㎡/g	>150	>150
Crush Strength	N	>25	>50
L.O.I. (250-1000 °C)	%wt	<7	<7
Attrition Rate	%wt	<1.0	<1.0
Shelf lifetime	Year	>5	>5
Operating Temperature	°C	Ambient to 400

📦

Packaging Options: 800 kg/big bag; 150 kg/steel drum.

⚠️

When using this product, the information and advice given in our Safety Data Sheet should be observed.

Frequently Asked Questions

What is the primary function of JooSorb AC-16?

JooSorb AC-16 is a highly promoted spherical alumina adsorbent designed specifically for the effective removal of HCl (hydrogen chloride) and organic chlorides from gas and liquid streams.

Which industries and applications benefit most from this adsorbent?

It is widely used in oil refining and petrochemical industries. Specific process streams include reforming net gas, fuel gas, reformate, LPG, pyrolysis oil, and propane cracking gas in propane dehydrogenation (PDH) units.

Is JooSorb AC-16 a regenerative adsorbent?

No, JooSorb AC-16 is a non-regenerative adsorbent, optimized for maximum chloride loading capacity during its single-use operation cycle.

What operating temperature range does it support?

JooSorb AC-16 can operate efficiently at temperatures ranging from ambient conditions up to 400 °C.

What physical sizes and shapes are available?

It is available in spherical shape with two standard nominal sizes: 1.4-2.8 mm (equivalent to 1/16”) and 2.0-5.0 mm (equivalent to 1/8”).

What is the typical shelf lifetime and packaging configuration?

The adsorbent has a shelf lifetime of over 5 years. It is supplied in either 800 kg big bags or 150 kg steel drums.
