| Properties |
Unit |
JZ-K1 |
| Diameter |
mm |
0.4-1.2 |
1.0-1.6 |
2-3 |
3-4 |
3-5 |
4-6 |
5-7 |
6-8 |
| Bulk Density |
≥g/ml |
0.75 |
0.75 |
0.7 |
0.7 |
0.68 |
0.68 |
0.66 |
0.66 |
| Surface Area |
≥m2/g |
300 |
300 |
300 |
300 |
300 |
280 |
280 |
280 |
| Pore Volume |
≥ml/g |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
| Crush Strength |
≥N/Pc |
/ |
25 |
70 |
100 |
150 |
160 |
170 |
180 |
| L.O.I. |
≤% |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
| Attrition Rate |
≤% |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Packaging Options
• 25 kg/woven bag
• 150 kg/steel drum
Storage Instruction
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
Key Features & Applications
-
Desiccant Applications
Air drying, electronic components drying, etc.
-
Applicable Equipment
Air drying, air separation purifier, nitrogen generator, etc.
-
Catalyst Carrier
Provides high-performance support structure.
-
Material Component

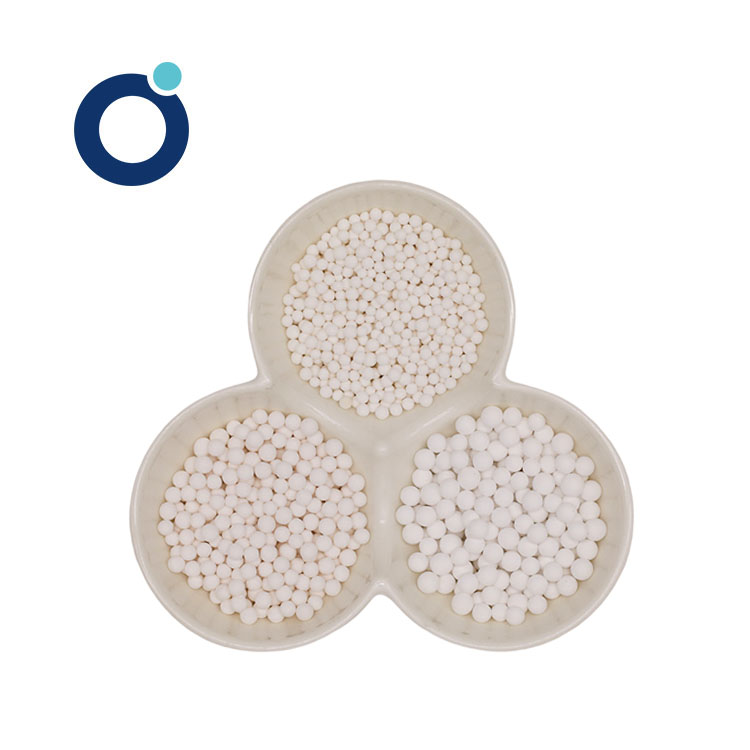

Made of aluminium oxide (alumina; Al2O3).
-
Industrial Waste Gas Purification
Effective system purification.
-
Drying of Petroleum Gas
Efficient moisture removal for processing.
-
Air Purification System
Ensures clean and dry air output.
-
Compressed Air Drying
Prevents condensation in pressure systems.
-
Defluoridation
Excellent defluoridation capacities.
Frequently Asked Questions (FAQ)
What material is JZ-K1 made of?
JZ-K1 is made of high-quality aluminium oxide (alumina; Al2O3).
What are the main application areas for JZ-K1?
JZ-K1 is widely used for desiccant drying (air drying, electronic components drying), catalyst carrier applications, defluoridation, industrial waste gas purification, petroleum gas drying, and compressed air drying systems.
What types of equipment are compatible with JZ-K1?
It is highly suitable for use in air drying installations, air separation purifiers, and nitrogen generators.
How is JZ-K1 packaged for shipping and handling?
The product is supplied in standard packaging sizes of either 25 kg per woven bag or 150 kg per steel drum.
What are the storage requirements for JZ-K1?
Since JZ-K1 acts as an active desiccant, it must not be exposed to open air. It should always be stored in dry conditions within air-proof packaging.
What range of diameters and physical strength does JZ-K1 offer?
It is available in various diameters ranging from 0.4-1.2 mm up to 6-8 mm. Its crush strength ranges from ≥25 N/Pc to ≥180 N/Pc depending on the chosen size option.
