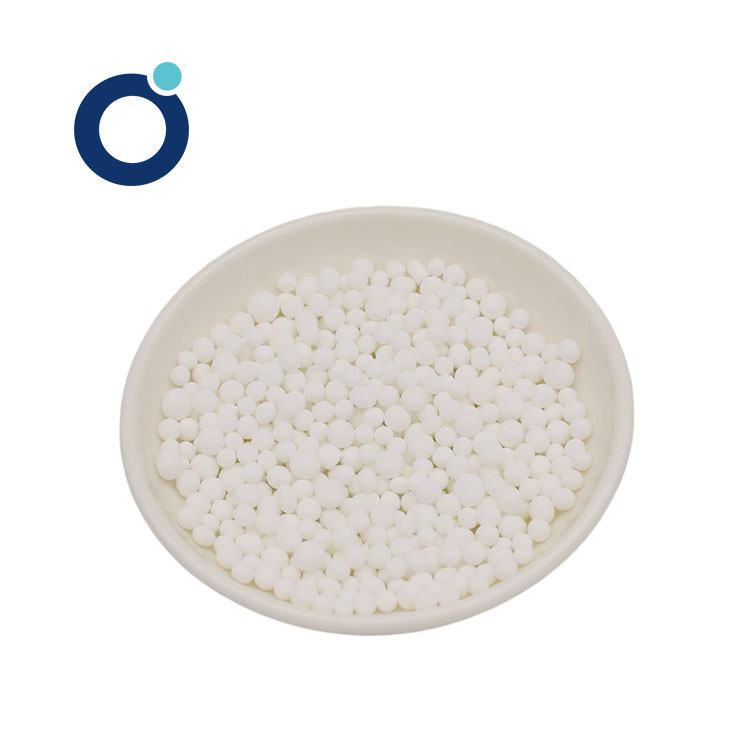

JZ-WSAG Silica Alumina Gel is designed for use as a protective layer for fine-pored silica gel or fine-pored silica-alumina gel. It can be used solely when liquid water is present in high content, achieving a lower dew point when liquid water exits in the system.
This high-performance product acts mainly as a drying agent for air-separation, compressed air, and industrial gases. It serves as an ethyne absorbent for the preparation of liquid oxygen or liquid nitrogen, and functions as a liquid absorbent or catalyst carrier in oil chemistry, electricity, and brewery industries. It is especially effective when used as a protective layer for common silica gel and silica-alumina gel.
Provides stable moisture control and dew point reduction in compressed air systems.
Optimized for deep dehydration and drying of natural gas streams.
| DATA | UNIT | Silica Alumina Gel | |
|---|---|---|---|
| Size | mm | 3-5 | |
| AL2O3 | % | 10.0 - 18.0 | |
| Specific Surface Area | ≥ m²/g | 450 | |
| Adsorption Capacity (25℃) | RH=10% | ≥ % | 3.0 |
| RH=40% | ≥ % | 12.0 | |
| RH=80% | ≥ % | 30.0 | |
| Bulk Density | ≥ g/L | 650 | |
| Crush Strength | ≥ N/Pcs | 80 | |
| Pore Volume | ml/g | 0.35 - 0.50 | |
| Loss on Heating | ≤ % | 3.0 | |
It is primarily used as a protective layer for fine-pored silica gel or fine-pored silica-alumina gel. It can also be used independently when there is a high content of liquid water in the system.
It is widely used in air-separation, compressed air drying, natural gas drying, industrial gas systems, oil chemistry, electricity, and the brewery industry.
When liquid water exits in the system, utilizing this gel helps achieve a lower dew point, maintaining optimal moisture control and protection.
The product is supplied in 25kg/kraft bags. It must not be exposed to open air and should be stored in dry conditions in air-proof packaging to maintain its desiccant properties.
JZ-WSAG Silica Alumina Gel features a specific surface area of ≥ 450 m²/g and a crush strength of ≥ 80 N/Pcs, ensuring high mechanical durability and adsorption capacity.
