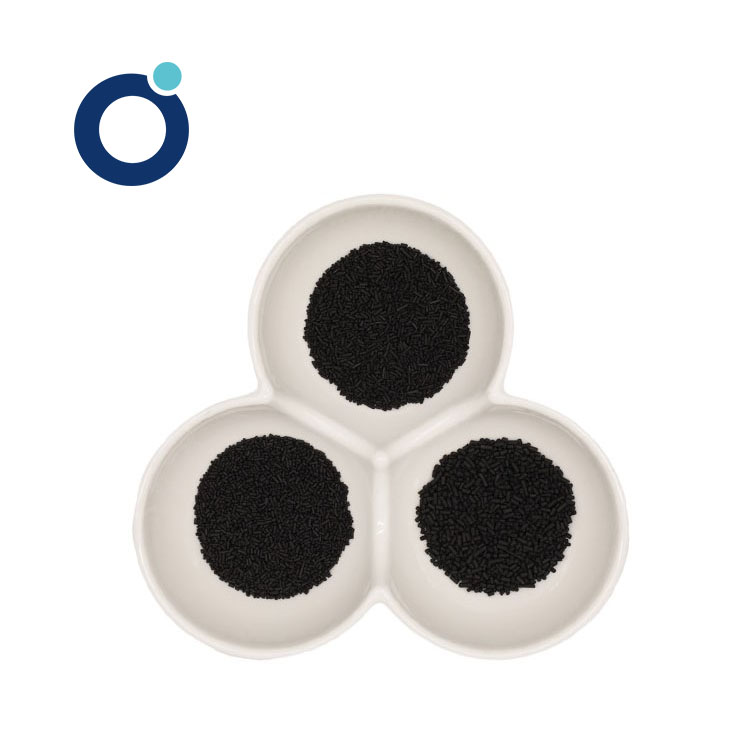

JZ-CMS6N is a new kind of non-polar adsorbent, designed for the enrichment of nitrogen from air, and has a high adsorption capacity from oxygen. With its characteristic of high efficiency, low air consumption and high purity nitrogen capacity.
Strict raw material testing, production control, and finished product regulations ensure a high capacity product.
Known for high nitrogen production, low energy costs, high solidity, and long-lasting duration in PSA systems.
Extensively applied in chemistry, oil & gas, food, transportation, and inventory industries.
For purity 99.5% of Nitrogen, the output capacity is 260 m³ for one ton of CMS6N per hour. It is widely used to separate N2 and O2 in the air in the PSA system.
| Type | Purity (%) | Productivity (Nm³/h.t) | Air / N₂ Ratio |
|---|---|---|---|
| JZ-CMS6N | 99.5 | 260 | 2.4 |
| 99.9 | 175 | 3.4 | |
| 99.99 | 120 | 4.6 | |
| 99.999 | 75 | 6.5 |
| Testing Size | Testing Temperature | Adsorption Pressure | Adsorption Time |
|---|---|---|---|
| 1.2 mm | ≦ 20℃ | 0.75 - 0.8 Mpa | 2 * 60s |
| Specification Type | Unit | Data Details |
|---|---|---|
| Diameter size | mm | 1.2, 1.5, 1.8, 2.0 |
| Bulk Density | g/L | 620 - 700 |
| Crush Strength | N/Piece | ≥ 50 |
Package sizes: Available in 20kg, 40kg, and 137kg plastic drums.
Storage: As a desiccant, this product cannot be exposed in the open air and should be stored in dry conditions with an air-proof package.
