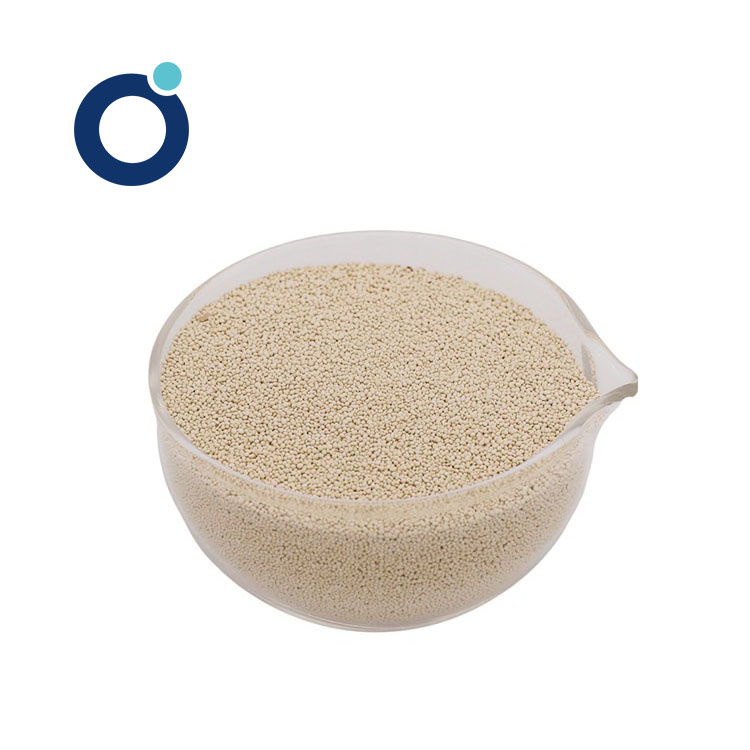

JZ-ZIG is Potassium sodium aluminosilicate, designed to absorb moleculars with a diameter of not more than 3 angstroms.
It is used to adsorb continuously an amount of moisture from the interspaces, maintaining the proper dew point of the space between the inner and outer panes of insulating glass. This minimizes pressure changes which can eventually lead to distortion of insulating glass or even breakage. The product can extend the lifetime of insulating glass units with low dust, low attrition, and low gas desorption, resulting in enhancing the overall quality, performance, and reliability of insulating glass.
Packaging Specification
25kg carton
Storage Instructions
The product as desiccant cannot be exposed in the open air and should be stored in dry conditions with an air-proof package.
Technical Properties
Properties
Unit
Bead (0.5-0.9mm)
Bead (1.0-1.5mm)
Diameter
mm
0.5-0.9
1.0-1.5
Static Water Adsorption
≥%
16
16
Bulk Density
≥%
0.7
0.7
Crushing Strength
≥N/Pc
/
10
Attrition Rate
≤%
40
40
Package Moisture
≤%
1.5
1.5
Frequently Asked Questions (FAQ)
What is JZ-ZIG?
JZ-ZIG is a Potassium sodium aluminosilicate desiccant designed to absorb molecules with a diameter of not more than 3 angstroms.
What is the primary function of JZ-ZIG in insulating glass?
It is used to continuously adsorb moisture from the interspaces and maintain the proper dew point between the inner and outer panes of insulating glass, which prevents pressure changes and potential distortion or breakage of the glass.
How does this product improve the reliability of insulating glass units?
By offering low dust, low attrition, and low gas desorption, the product extends the lifetime of the insulating glass units, thereby enhancing their overall quality and performance.
What are the storage requirements for JZ-ZIG?
JZ-ZIG must not be exposed to the open air. It should be stored in dry conditions within an air-proof package.
What are the available bead size options and packaging specifications?
The product features bead diameters of 0.5-0.9 mm and 1.0-1.5 mm, and it is supplied in 25kg cartons.
What is the static water adsorption capacity of JZ-ZIG?
Both bead specifications (0.5-0.9 mm and 1.0-1.5 mm) have a static water adsorption capacity of ≥16%.
